Fiset Mathieu, Bastien Josée et Mitchell Denis. (2017). Methods for shear strengthening of thick concrete slabs. Journal of Performance of Constructed Facilities, 31, (3), p. 1-10.
Prévisualisation |

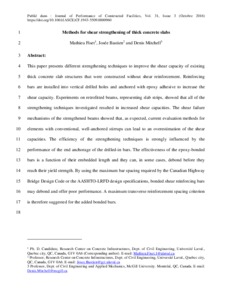

PDF
- Version acceptée
2MB |
URL officielle: http://dx.doi.org/10.1061/(ASCE)CF.1943-5509.00009...
Résumé
This paper presents different strengthening techniques to improve the shear capacity of existing thick concrete slab structures that were constructed without shear reinforcement. Reinforcing bars are installed into vertical drilled holes and anchored with epoxy adhesive to increase the shear capacity. Experiments on retrofitted beams, representing slab strips, showed that all of the strengthening techniques investigated resulted in increased shear capacities. The shear failure mechanisms of the strengthened beams showed that, as expected, current evaluation methods for elements with conventional, well-anchored stirrups can lead to an overestimation of the shear capacities. The efficiency of the strengthening techniques is strongly influenced by the performance of the end anchorage of the drilled-in bars. The effectiveness of the epoxy-bonded bars is a function of their embedded length and they can, in some cases, debond before they reach their yield strength. By using the maximum bar spacing required by the Canadian design code for bridges or the AASHTO-LRFD design specifications, bonded shear-reinforcing bars may debond and offer poor performance. A maximum transverse reinforcement spacing criterion is therefore suggested for the added bonded bars.
Type de document: | Article publié dans une revue avec comité d'évaluation |
---|---|
Volume: | 31 |
Numéro: | 3 |
Pages: | p. 1-10 |
Version évaluée par les pairs: | Oui |
Date: | 2017 |
Sujets: | Sciences naturelles et génie > Génie Sciences naturelles et génie > Génie > Génie civil Sciences naturelles et génie > Génie > Génie des matériaux et génie métallurgique Sciences naturelles et génie > Sciences appliquées |
Département, module, service et unité de recherche: | Départements et modules > Département des sciences appliquées |
Mots-clés: | concrete slabs, shear strength of soils, reinforcing bars, bridge design & construction, epoxy compounds, dalles de béton, résistance au cisaillement des sols, barres d'armature, conception et construction de ponts, composés époxy |
