Aubert Roger J., Truchon Martin, Sinusas Eric, Boussetoua Mohammed, Ouhrouche Mohand, Fortin Guy, Mercier Carol et Perron Jean. Electrical generator for rotating structure. .

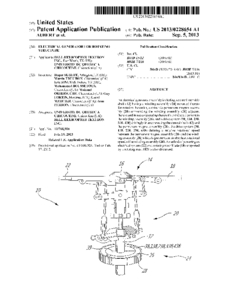

Prévisualisation |
PDF
49kB |
Résumé
An electrical generator assembly including a central rotatable shaft (12) having a winding assembly (26) mounted thereto for rotation therewith, a rotatable permanent magnet assembly (28) surrounding the winding assembly (26) adjacent thereto and in use cooperating therewith to induce a current in the winding assembly (26), and a drive system (38, 138, 238, 338, 438) drivingly interconnecting the central shaft (12) and the permanent magnet assembly (28), the drive system (38, 138, 238, 338, 438) defining a relative rotational speed between the permanent magnet assembly (28) and the winding assembly (26) which is greater than an absolute rotational speed of the winding assembly (26). A method of powering an electrical system (22) on a rotating rotor blade (18) supported by a rotating mast (12) is also discussed. US 20130228654 A1 Université du Québec à Chicoutimi Belle Helicopter textron inc. B64D 15/12, H02K 7/116, 244/134 D, 290/1 C B64D 15/12, H02K 7/116
| Type de document: | Brevet |
|---|---|
| Sujets: | Sciences naturelles et génie > Génie > Génie des matériaux et génie métallurgique |
| Département, module, service et unité de recherche: | Départements et modules > Département des sciences appliquées > Module d'ingénierie |
| Mots-clés: | Générateur électrique, structure rotative, ensemble d'enroulement |
| Déposé le: | 22 janv. 2016 02:58 |
|---|---|
| Dernière modification: | 09 déc. 2016 14:17 |
