Résumé

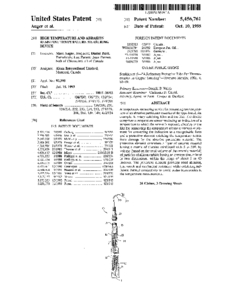

A temperature measuring device for measuring the temperature of an abrasive particulate material of the type found, for example, in rotary calcining kilns and the like. The device comprises a temperature sensor producing an indication of a temperature to which the sensor is exposed, circuitry or the like for connecting the temperature sensor to remote equipment for converting the indication to a recognisable form and a protective element shielding the temperature sensor from damage by the abrasive particulate material. The protective element comprises a layer of ceramic material having a matrix of alumina reinforced with 5 to 50% by volume (based on the total volume of the ceramic material) of particles of silicon carbide having an average size, at least in two dimensions, within the range of about 5 to 60 microns. The protective element provides good abrasion, heat-shock and mechanical resistance while exhibiting sufficient thermal conductivity to avoid undue inaccuracies in the temperature measurements. US 5456761 A 136/232; 136/233; 136/234; 374/139; 374/179; 374/208; 374/E1.02; 374/E7.009 92393
