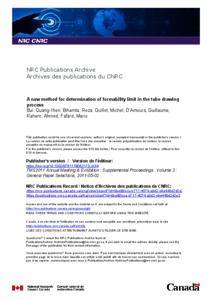

Bui Quang-Hien, Bihamta Reza, Guillot Michel, D'Amours Guillaume, Rahem Ahmed et Fafard Mario. (2011). A new method for determination of formability limit in the tube drawing process. Dans : TMS2011 Annual Meeting & Exhibition : Supplemental Proceedings : Volume 3 : General Paper Selections , 27 February - March 3, 2011, San Diego, California.
Prévisualisation |
PDF
- Version acceptée
853kB |
Résumé
A new method for determination of formability limit in the tube drawing process was developed using the position controlled mandrel technique. In this method the mandrel has conical angle in a way that with change of mandrel position, the distance between die and mandrel will be changed and various combinations of thicknesses can be obtained using just one conic mandrel. The advantage of this method is determining the limit cross-sectional reduction for each tube dimension with just one experiment. The realized drawing limit tests on the aluminium tubes show that the average maximum area reduction of AA6063 tubes is about 40%. An optimal tube drawing schedule for production of the constant wall thickness aluminium tubes with high crosssectional reduction in one pass was successfully established based on the proposed formability limit test.
| Type de document: | Matériel de conférence (Non spécifié) |
|---|---|
| Date: | 28 Février 2011 |
| Sujets: | Sciences naturelles et génie > Génie > Génie des matériaux et génie métallurgique |
| Département, module, service et unité de recherche: | Départements et modules > Département des sciences appliquées > Module d'ingénierie |
| Liens connexes: | |
| Mots-clés: | tube drawing, drawing limit, formability, AA 6063, dessin de tube, limite de dessin, formabilité |
| Déposé le: | 17 oct. 2019 20:32 |
|---|---|
| Dernière modification: | 17 oct. 2019 20:32 |
