Constellation, le dépôt institutionnel de l'Université du Québec à Chicoutimi

Résumé

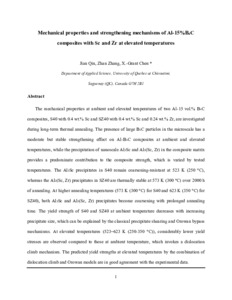

The mechanical properties at ambient and elevated temperatures of two Al-15 vol pct B4C composites, S40 with 0.4 wt pct Sc and SZ40 with 0.4 wt pct Sc and 0.24 wt pct Zr, are investigated during long-term thermal annealing. The presence of large B4C particles in the microscale has a moderate but stable strengthening effect on Al-B4C composites at ambient and elevated temperatures, while the precipitation of nanoscale Al3Sc and Al3(Sc, Zr) in the composite matrix provides a predominate contribution to the composite strength, which is varied by tested temperatures. The Al3Sc precipitates in S40 remain coarsening resistant at 523 K (250 °C), whereas the Al3(Sc, Zr) precipitates in SZ40 are thermally stable at 573 K (300 °C) over 2000 hours of annealing. At higher annealing temperatures (573 K (300 °C) for S40 and 623 K (350 °C) for SZ40), both Al3Sc and Al3(Sc, Zr) precipitates become coarsening with prolonged annealing time. The yield strength of S40 and SZ40 at ambient temperature decreases with the increasing precipitate size, which can be explained by the classical precipitate shearing and Orowan bypass mechanisms. At elevated temperatures [523 K to 623 K (250 °C to 350 °C)], considerably lower yield stresses are observed compared to those at ambient temperature, which invokes a dislocation climb mechanism. The predicted yield strengths at elevated temperatures by the combination of dislocation climb and Orowan models are in good agreement with the experimental data.
