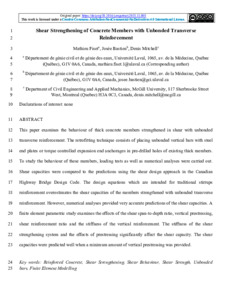

Fiset Mathieu, Bastien Josée et Mitchell Denis. (2019). Shear strengthening of concrete members with unbonded transverse reinforcement. Engineering Structures, 180, p. 40-49.
Prévisualisation |
PDF
- Version acceptée
Disponible sous licence Creative Commons (CC-BY-NC-ND 2.5). 5MB |
URL officielle: http://dx.doi.org/doi:10.1016/j.engstruct.2018.11....
Résumé
This paper examines the behaviour of thick concrete members strengthened in shear with unbonded transverse reinforcement. The retrofitting technique consists of placing unbonded vertical bars with steel end plates or torque controlled expansion end anchorages in pre-drilled holes of existing thick members. To study the behaviour of these members, loading tests as well as numerical analyses were carried out. Shear capacities were compared to the predictions using the shear design approach in the Canadian Highway Bridge Design Code. The design equations which are intended for traditional stirrups reinforcement overestimates the shear capacities of the members strengthened with unbonded transverse reinforcement. However, numerical analyses provided very accurate predictions of the shear capacities. A finite element parametric study examines the effects of the shear span-to-depth ratio, vertical prestressing, shear reinforcement ratio and the stiffness of the vertical reinforcement. The stiffness of the shear strengthening system and the effects of prestressing significantly affect the shear capacity. The shear capacities were predicted well when a minimum amount of vertical prestressing was provided.
Type de document: | Article publié dans une revue avec comité d'évaluation |
---|---|
Volume: | 180 |
Pages: | p. 40-49 |
Version évaluée par les pairs: | Oui |
Date: | 1 Février 2019 |
Sujets: | Sciences naturelles et génie > Génie Sciences naturelles et génie > Génie > Génie civil Sciences naturelles et génie > Sciences appliquées |
Département, module, service et unité de recherche: | Départements et modules > Département des sciences appliquées > Module d'ingénierie |
Mots-clés: | reinforced concrete, shear strengthening, shear behaviour, shear strength, unbonded bars, finite element modeling, béton armé, renforcement au cisaillement, comportement au cisaillement, résistance au cisaillement, barres non liées, modélisation par éléments finis |
